Lightweight Whiteboard

Lightweight Whiteboard is a Visual Studio Code extension that opens a simple drawing board inside the editor. You can sketch with a pen, draw lines, arrows and shapes, fill areas with a paint bucket and drop images onto the board.

Each board is a *.whiteboard file that contains a normal PNG image, so it can live in your project like any other file. Saving, undo, redo and revert work like in any other VS Code editor. Existing PNG files can be opened in the board as well.

Latest version

Extension	1.1.0
VS Code	1.90 or newer
Requires	No other extensions
Download	VS Code Marketplace

The information in this wiki is taken from version 1.1.0.

Quick start

1. Install the extension from the Marketplace. See Installation.
2. Open the Command Palette (Ctrl+Shift+P) and run Whiteboard: New Whiteboard. A blank board opens.
3. Draw with the pen (P), pick a color from the color bar and try the shapes. See Drawing Tools.
4. Press Ctrl+S and choose a name. The board is saved as a .whiteboard file. See Files and Saving.

Screenshot

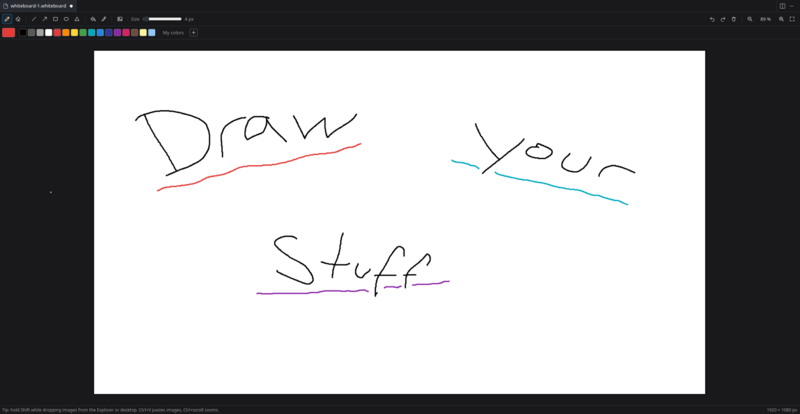

A new board with the toolbar, the color bar and the status bar
